Voltro Pro is a premium rental LED solution featuring precision 576×576mm hub-type die-cast cabinets, ultra-high 7680Hz refresh rate for broadcast use, fast lock installation, and reinforced corner protection. Designed for demanding live events, concerts, and large-scale productions where reliability, quick deployment, and camera-friendly visuals are essential.
Voltro Pro Series is built to deliver reliable, broadcast-ready rentals across major event categories.

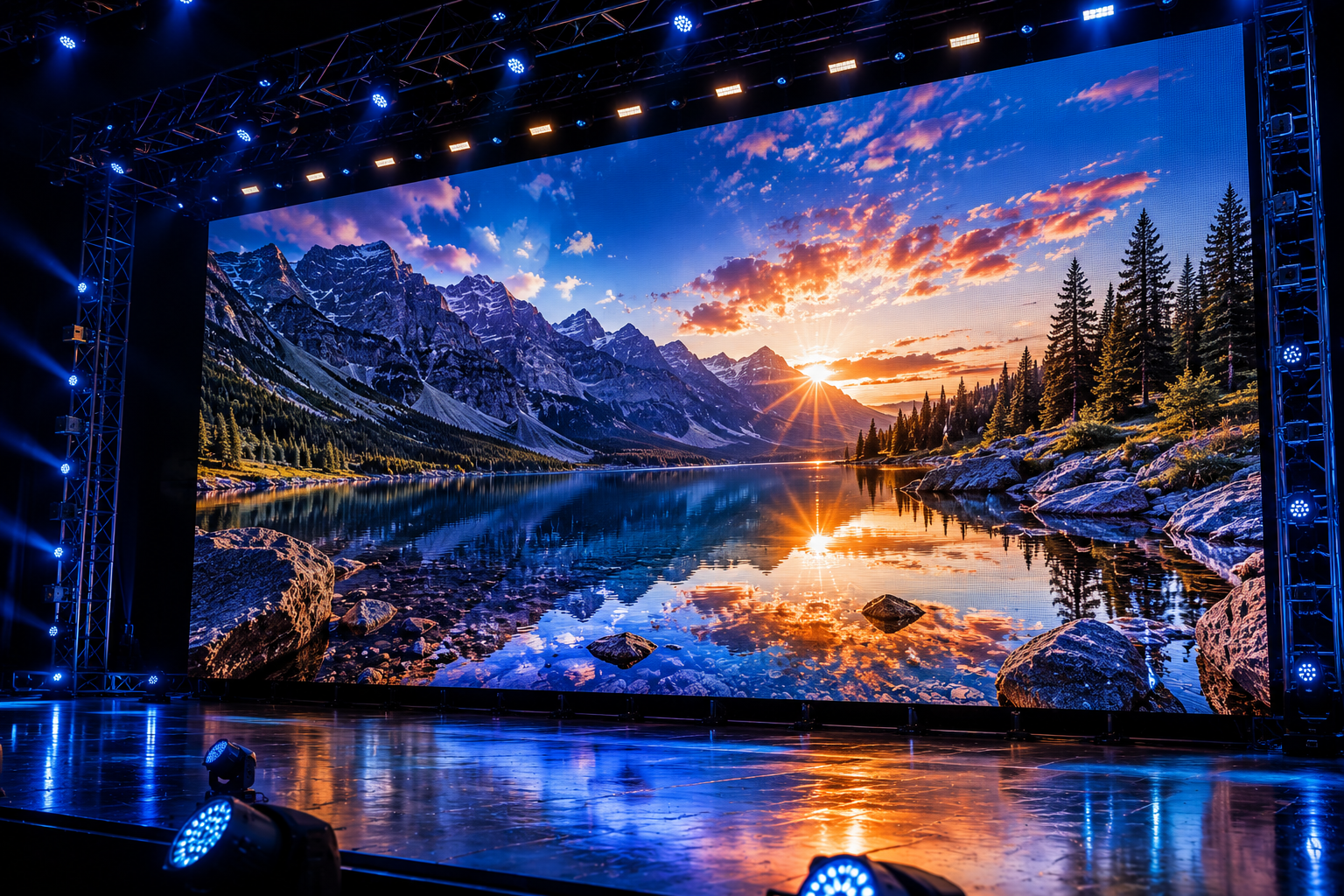

Ultra-high refresh rate delivers flicker-free broadcast-ready visuals for UHD cameras, live streaming systems, and professional event video production.

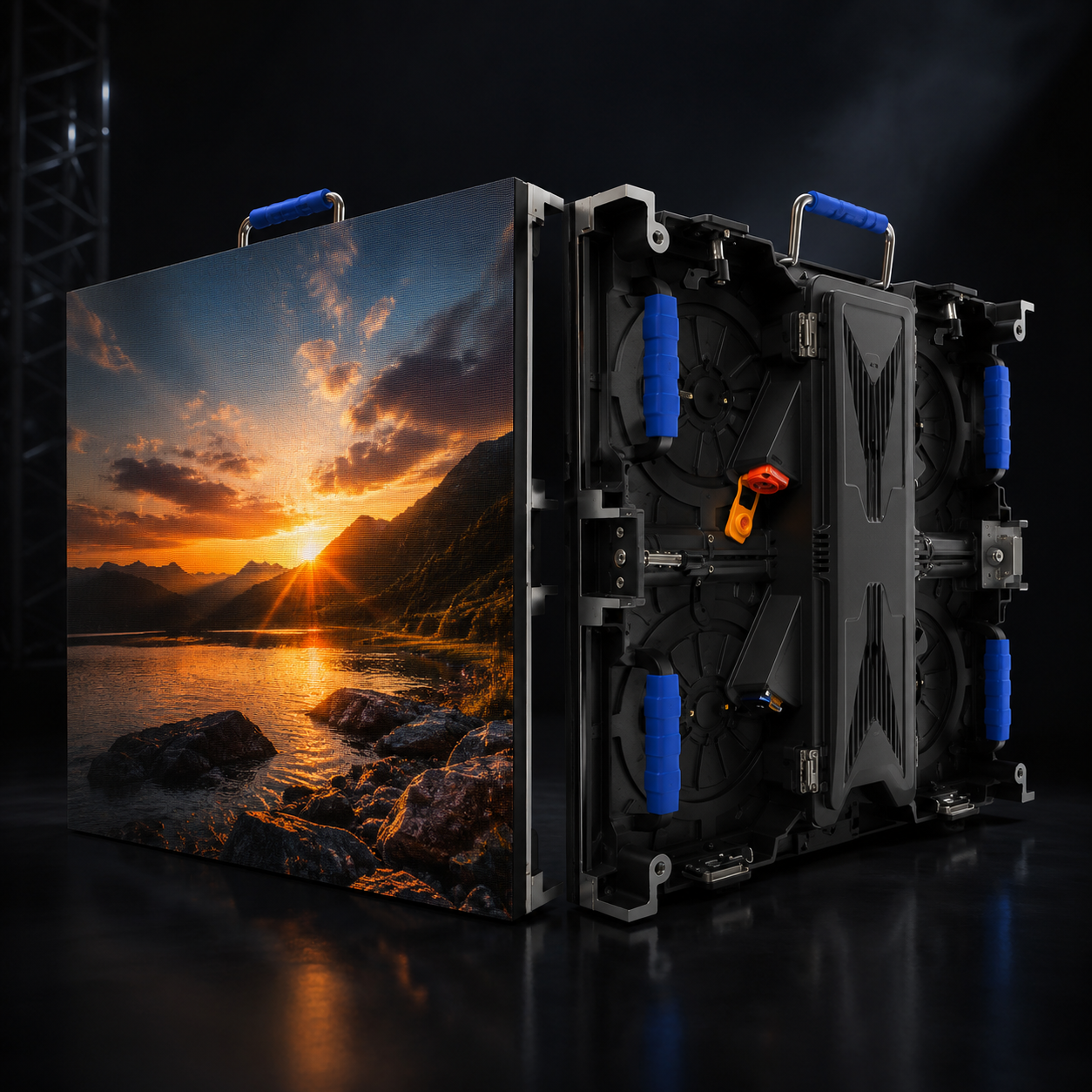

Precision 576×576mm hub-type die-cast aluminium cabinets deliver exceptional strength, seamless panel alignment, and outstanding rental durability.

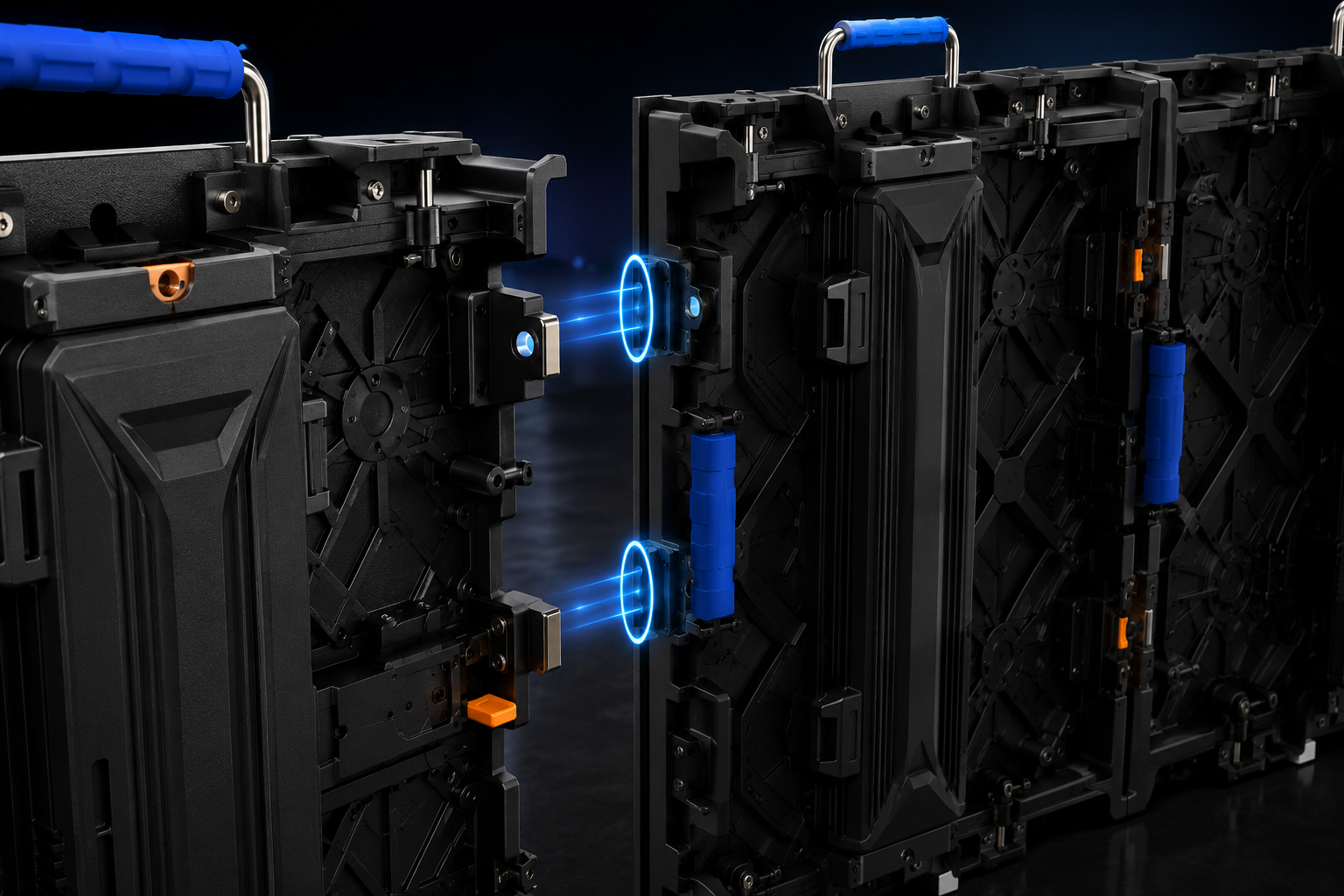

Tool-free magnetic fast lock mechanism enables rapid panel-to-panel connection for fast setup and breakdown at every professional event deployment.

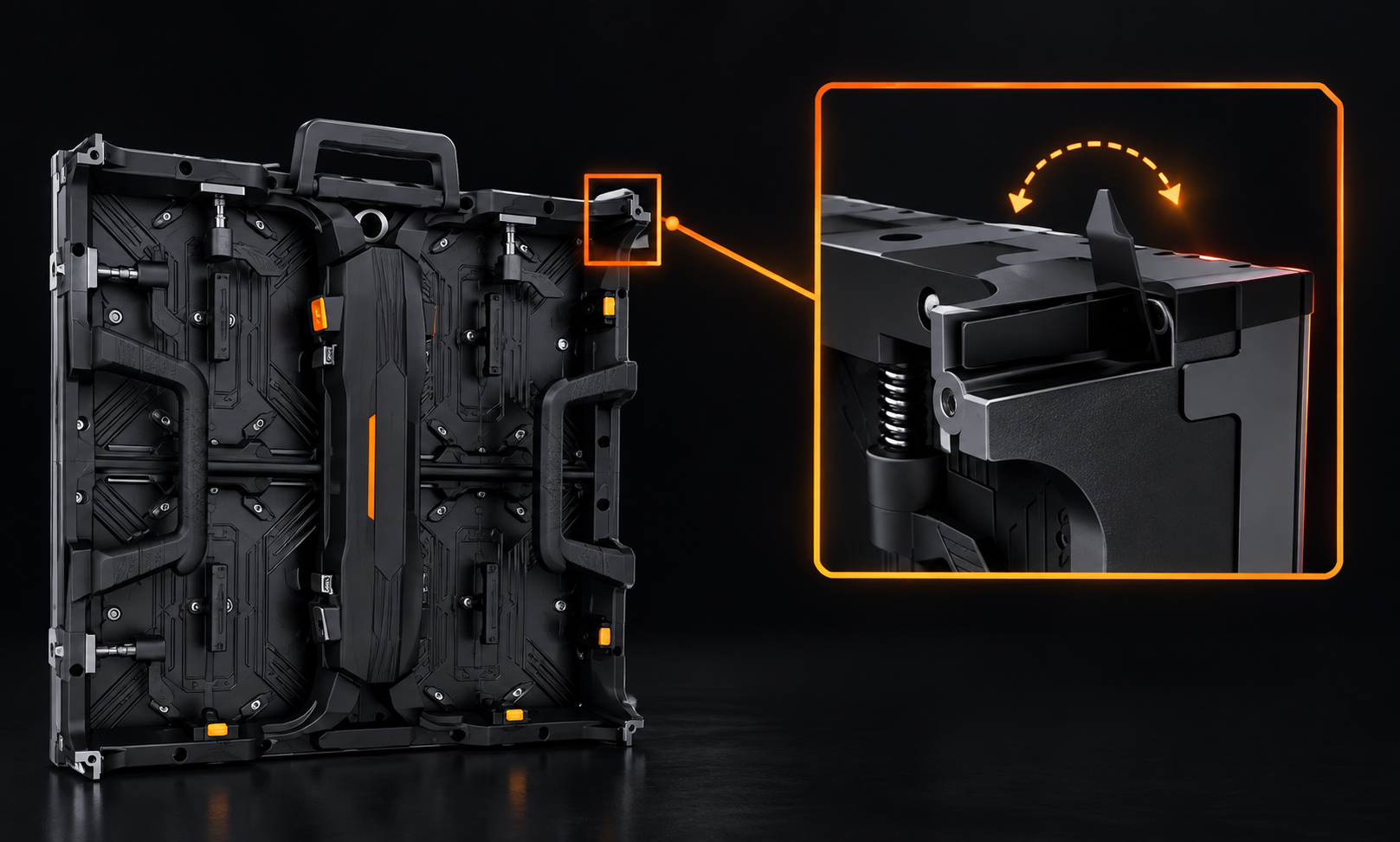

Reinforced corner guards are built into every cabinet to absorb impact and prevent damage during transport, rigging, and repeated rental cycles.

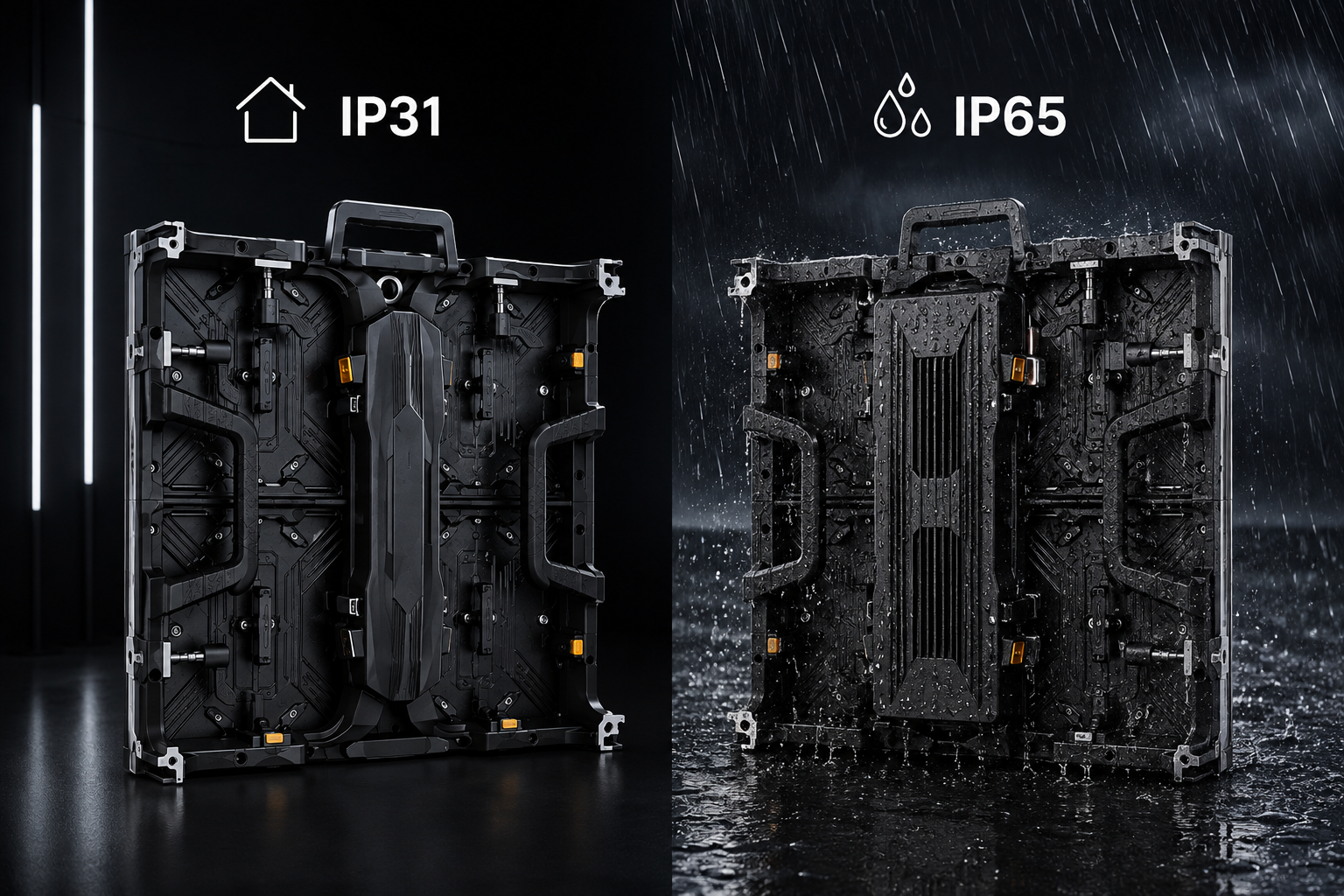

IP31 rated indoor modules and IP65 rated outdoor modules deliver the right protection for every event environment and weather condition.
Select the right model for your indoor or outdoor rental requirements.
| SPECIFICATION | SH-VP-P1.9 | SH-VP-P2.6 | SH-VP-P2.9 | SH-VP-P2.9(OUT) | SH-VP-P3.9(OUT) | SH-VP-P4.8(OUT) |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.95 mm | 2.6 mm | 2.9 mm | 2.9 mm | 3.9 mm | 4.8 mm |
| Variant | Indoor | Indoor | Indoor | Outdoor | Outdoor | Outdoor |
| LED Technology | Fine Pitch SMD | SMD Indoor | SMD Indoor | SMD Outdoor | SMD Outdoor | SMD Outdoor |
| Cabinet Type | Hub Die-Cast | Hub Die-Cast | Hub Die-Cast | Hub Die-Cast | Hub Die-Cast | Hub Die-Cast |
| Cabinet Size (mm) | 576×576 | 576×576 | 576×576 | 576×576 | 576×576 | 576×576 |
| Cabinet Material | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium |
| Pixel Density (per m²) | 262,144 | 147,929 | 118,681 | 118,681 | 65,536 | 43,402 |
| Maintenance | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Brightness (nits) | 1000 | 1200 | 1500 | 4500 | 5000 | 5500 |
| Module Protection | IP31 | IP31 | IP31 | IP65 | IP65 | IP65 |
| Viewing Angle (H×V) | 160°×140° | 160°×140° | 160°×140° | 140°×120° | 140°×120° | 140°×120° |
| Refresh Rate | 7680 Hz | 7680 Hz | 7680 Hz | 7680 Hz | 7680 Hz | 7680 Hz |
| Grayscale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Contrast Ratio | 6000:1 | 6000:1 | 6000:1 | 7000:1 | 7000:1 | 7000:1 |
| Color Temperature | 3200K–9300K | 3200K–9300K | 3200K–9300K | 3200K–9300K | 3200K–9300K | 3200K–9300K |
| Average Power (W/m²) | 120 | 140 | 160 | 210 | 230 | 250 |
| Maximum Power (W/m²) | 380 | 420 | 480 | 620 | 670 | 720 |
| Cabinet Weight (kg) | 6.5 | 6.8 | 7.0 | 7.8 | 8.2 | 8.5 |
| Fast Lock System | Yes | Yes | Yes | Yes | Yes | Yes |
| Corner Protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Hub-Type Cabinet | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -10°C to +45°C | -10°C to +45°C | -10°C to +45°C | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C |
| Storage Temperature | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C |
| Operating Humidity | 10%–90% RH | 10%–90% RH | 10%–90% RH | 10%–90% RH | 10%–90% RH | 10%–90% RH |
| Lifetime | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours |
Contact SH DISPLAY SYSTEMS for Voltro Pro Series rental configuration, indoor and outdoor options, and a tailored proposal for your event or production.
